Product Specification
Clik for customSize
Click to change mm to inch

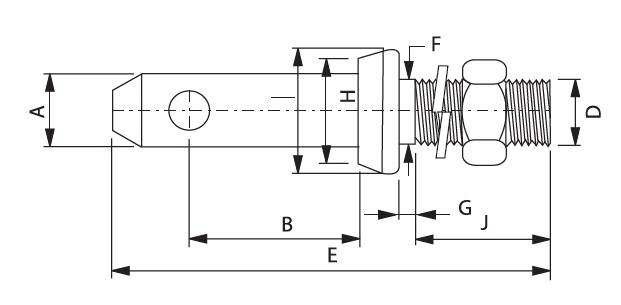

| CODE | A | B | C | D | E | F | G | H | i | J | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ST-LLP22-18M | 22 | 46 | 12 | M18X1.5 | 133 | 18 | 5 | 31 | 37 | 45 | Enquiry |
| ST-LLP22-18M | 22 | 46 | 12 | M20X1.5 | 130 | 20 | 5 | 30 | 36 | 46 | Enquiry |
| ST-LLP2211M | 22 | 51 | 12 | M20X1.5 | 128 | 20 | 10 | 30 | 36 | 38 | Enquiry |
| ST-LLP2201M | 22 | 51 | 12 | M20X1.5 | 130 | 20 | 5 | 30 | 36 | 40 | Enquiry |
| ST-LLP2202M | 22 | 51 | 12 | M22X1.5 | 140 | 22 | 14 | 30 | 38 | 40 | Enquiry |
| ST-LLP2205U | 22 | 51 | 12 | 3/4 | 140 | 19 | 6 | 30 | 36 | 48 | Enquiry |
| ST-LLP2206U | 22 | 51 | 12 | 5/8 | 140 | 22 | 11 | 30 | 36 | 43 | Enquiry |
| ST-LLP2210U | 22 | 51 | 12 | 7/8 | 138 | 28.6 | 14 | 30 | 36 | 38 | Enquiry |
| ST-LLP2216U | 22 | 51 | 12 | 7/8 | 140 | 22 | 5 | 30 | 36 | 46 | Enquiry |
| ST-LLP2207U | 22 | 51 | 12 | 7/8 | 146 | 28.6 | 22 | 30 | 36 | 38 | Enquiry |
| ST-LLP2204U | 22 | 51 | 12 | 7/8 | 149 | 22 | 11 | 30 | 36 | 54 | Enquiry |
| ST-LLP2209U | 22 | 51 | 12 | 1 | 146 | 25.4 | 9.5 | 30 | 36 | 51 | Enquiry |
| ST-LLP22-22M | 22 | 60 | 12 | M22X1.5 | 146 | 22 | 16 | 38 | 44 | 40 | Enquiry |
| ST-LLP22-24M | 22 | 60 | 1212 | M22X1.5 | 146 | 24 | 16 | 38 | 44 | 40 | Enquiry |
| ST-LLP22-25M | 22 | 60 | 12 | M22X1.5 | 146 | 25 | 16 | 38 | 44 | 40 | Enquiry |
| ST-LLP22-28M | 22 | 60 | 12 | M22X1.5 | 146 | 28 | 16 | 38 | 44 | 40 | Enquiry |
| ST-LLP22-22M | 25 | 60 | 12 | M22X1.5 | 146 | 22 | 16 | 38 | 44 | 40 | Enquiry |
| ST-LLP25-25M | 25 | 60 | 12 | M22X1.5 | 146 | 25 | 16 | 38 | 44 | 40 | Enquiry |
| ST-LLP25-28M | 25 | 60 | 12 | M22X1.5 | 146 | 28 | 16 | 38 | 44 | 40 | Enquiry |
| ST-LLP2822M | 28 | 55 | 12 | M24X1.5 | 150 | 24 | 15 | 38 | 44 | 45 | Enquiry |
| ST-LLP2823M | 28 | 55 | 12 | M27X1.5 | 150 | 28 | 14 | 38 | 44 | 45 | Enquiry |
| ST-LLP2824M | 28 | 58 | 12 | M27X1.5 | 147 | 27 | 10 | 38 | 44 | 48 | Enquiry |
| ST-LLP2845M | 28 | 60 | 12 | M27X1.5 | 140 | 28 | 15 | 38 | 44 | 35 | Enquiry |
| ST-LLP28-22M | 28 | 60 | 12 | M22X1.5 | 146 | 22 | 16 | 38 | 44 | 40 | Enquiry |
| ST-LLP28-24M | 28 | 60 | 12 | M22X1.5 | 146 | 24 | 16 | 38 | 44 | 40 | Enquiry |
| ST-LLP28-25M | 28 | 60 | 12 | M22X1.5 | 146 | 25 | 16 | 38 | 44 | 40 | Enquiry |
| ST-LLP28-28M | 28 | 60 | 12 | M22X1.5 | 146 | 28 | 16 | 38 | 44 | 40 | Enquiry |
| ST-LLP2836U | 28.6 | 51 | 12 | 3/4 | 149 | 25.4 | 24 | 38 | 44 | 36.5 | Enquiry |
| ST-LLP2840U | 28.6 | 60 | 12 | 3/4 | 149 | 19 | 6 | 38 | 44 | 54 | Enquiry |
| ST-LLP2842U | 28.6 | 60 | 12 | 7/8 | 136.5 | 22 | 12.7 | 38 | 44 | 35 | Enquiry |
| ST-LLP2843U | 28.6 | 60 | 12 | 7/8 | 146 | 22 | 12.7 | 38 | 44 | 44 | Enquiry |
| ST-LLP2841U | 28.6 | 60 | 12 | 7/8 | 149 | 28.6 | 22 | 38 | 44 | 38 | Enquiry |
| ST-LLP2839U | 28.6 | 60 | 12 | 1 | 149 | 25.4 | 9.5 | 38 | 44 | 51 | Enquiry |
| ST-LLP2837U | 28.6 | 57 | 12 | 9/8 | 159 | 28.6 | 16 | 38 | 44 | 60 | Enquiry |
| ST-LLP2838U | 28.6 | 60 | 12 | 9/8 | 149 | 28.6 | 9.5 | 38 | 44 | 51 | Enquiry |
| ST-LLP3845U | 36 | 54 | 12 | 9/8 | 149 | 28.6 | 16 | 46 | 52 | 48 | Enquiry |
| ST-LLP3642M | 36.5 | 61 | 12 | M27X1.5 | 165 | 27 | 29 | 46 | 52 | 60 | Enquiry |
